Rack Milling Cutters/Worm Milling Cutters

module pitch, 20° presure angle

basic profile Ⅰ to DIN 3972

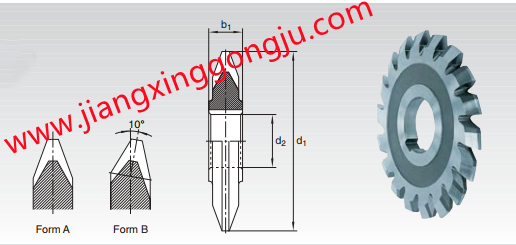

form A with striaght profile

form B with 10° inclined profile

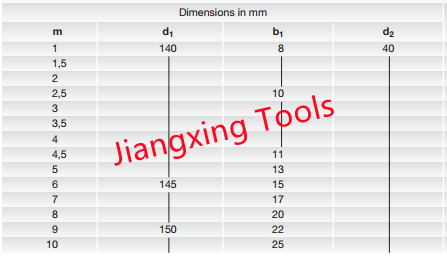

Conventional specifications of standard module rack milling cutters as following:

Unless otherwise specified, we supply form A.
We also manufacture: rack milling cutters with larger dimensions and different basic profiles.
