Disk Type Shaper Cutters with DIN 1825
2023-04-03 15:19:59
jiangxingTools
3137

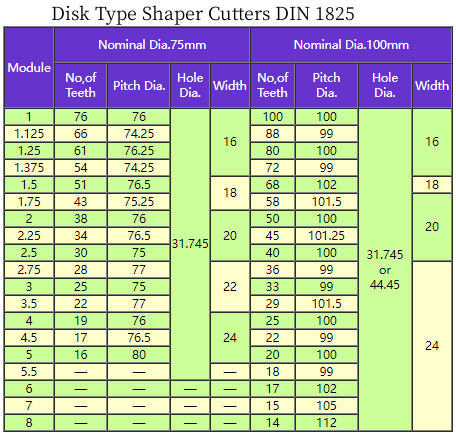

Disk Type Shaper Cutters with DIN 1825
These shaper cutters are 20° PA non-topping finishing cutters
Tooth profile is according to DIN 3972 profile Ⅱ
cutter with other profile like Ⅰ，Ⅲ，Ⅳ can also be supplied.
bore of disk type shaper cutter are 31.743mm, or 44.443mm.
material is HSS M2, M2E, M35, M42, ASP2052, S390 and carbide.
